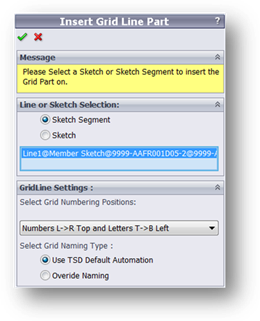

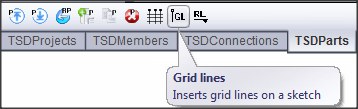

A
sketch or Sketch Segment is selected and Grid Line parts are add to the Welded
Member Level Assembly

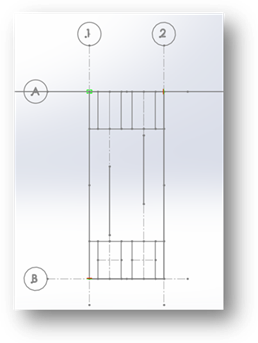

Depending on the Selection in the Grid Numbering Positions specific grid lines balloons positions are added.
A selection of Letters and Numbers in any orientation can be added to the Welded Member Level Assembly.
The TSD Default Automation Selection automates the insertion of letters and numbers starting at Letters start at ‘A’ and numbers start at ‘1’
The Over-ride selection allows individual selection of a grid lines Number or Letter. This selection only works on individual sketch segments.
The Grid Line Part is used later by the Section Blockout and General Arrangement Functions in the TSDDrawings Menu/Toolbar.
For
more information, click the link to view details Section Blockout
