When a Project is created for the very first time, the Project Login Creates an Area Assembly based on the Project Number and Area Code. From this point on it acts as shortcut on your desktop to access the Areas in a Project.

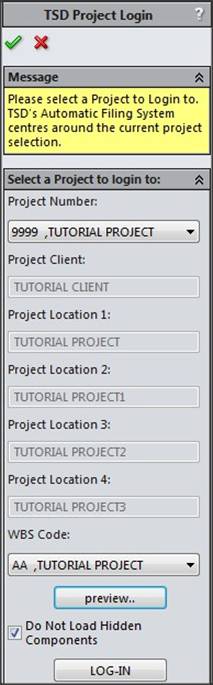

To Log into an Existing Project and Area





Select Project Number



Select WBS Code



Select LOG-IN



When logging into a project for the first time, the Project Assembly and Area Assembly are created.



eg. 9999.SLDASM and 9999-AA.SLDASM

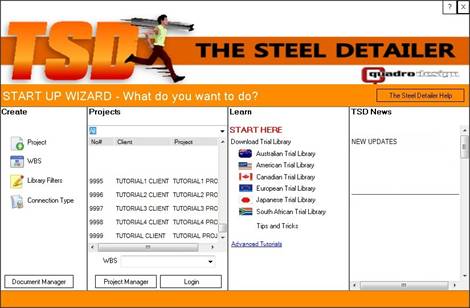

●  Login using the Startup wizard

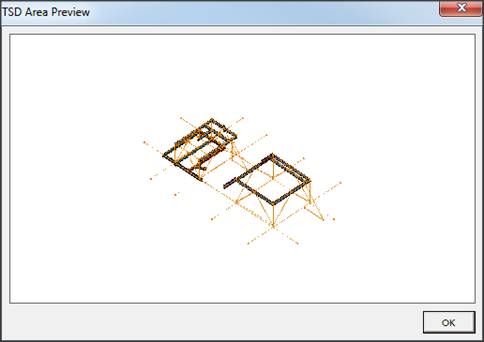

●   Project Preview













●  Using this function on the Menu Bar click TSDProjects as shown below, then select the   Icon

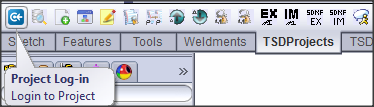

   ● Alternately use the button located on the Command Manager Tool Bar under TSDProjects tab as shown below.

















                                                                 Video Demonstration Link



                                Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
