The Reduced Level Function places a Reduced Level or Elevated Level Part into a Welded Member Level Assembly like a Frame.

By selecting a Sketch point in the Welded Member Level Assembly such as Frame and then placing an RL/EL level in the Selection box the RL is placed into the Assembly with a collective RL Notification.

If the notification is incorrect, open the part and rebuild the part. The Correct level will be shown.



























The Reduced level is used later by the Section Blockout and General Arrangement Functions in the TSDDrawings Menu/Toolbar.

For more information, please refer Section Blockout











 ● Using this function on the Menu Bar click TSDParts as shown below, then select the  Icon.

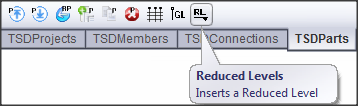

 ● Alternately use the   button located on the Command Manager Tool Bar under TSDParts tab as shown below.











                            Video Demonstration Link



 Click this link to go to the TSDParts Toolbar TSDParts Toolbar
