BOM Compiler enters the custom properties into each of the Sections & Plates to compile an MTO.

Plates and Section Parts have their BOM’s updated automatically through the Custom Properties.

Plates must be drawn on the Top View. A bounding box is added to the plate and the sides are measured.

The plate size is compared against flat bar sizes and named accordingly.

A single welded section has the cut list data added to the custom properties of the part, allowing BOM data to populate through from a cut list to an assembly BOM, removing indented cut lists.

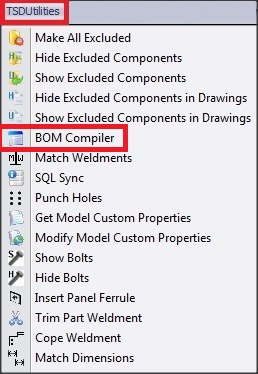

 ● Using this function on the Menu Bar click TSDUtilities as shown below, then select the   Icon.

 ● Alternately use the  button located on the Command Manager Tool Bar under TSDUtilities tab as shown below.

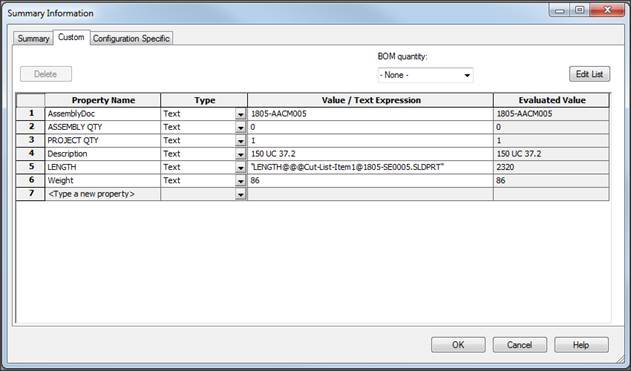

See below for an example of the Properties automatically populated by the BOM Complier function.

                                                      Video Demonstration Link

                      Click this link to go to the TSDUtilities Toolbar TSDUtilities Toolbar
