Once an area is uploaded using  Area Upload then it can be added to a project using the Insert Area function.

A WBS "Work Breakdown Structure" must be empty to insert an area into a project.

To create a WBS (Area) refer Creating a WBS

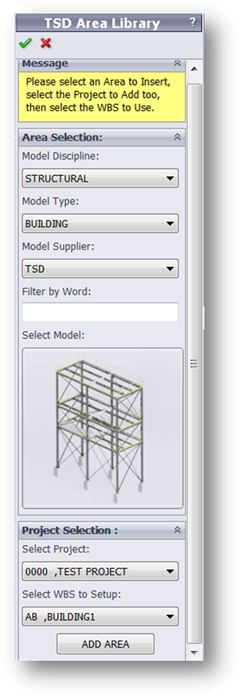

Remember to select the Image, then the Project and last of the WBS.

● Using this function on the Menu Bar click TSDProjects as shown below, then select the  Icon.

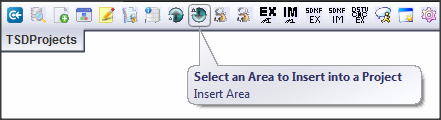

● Alternately use the  button located on the Command Manager Tool Bar under TSDProjects tab as shown below.

                                      Video Demonstration Link

                Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
