WBS MANAGER - "Work Breakdown Structure"



Projects are broken into areas and are treated accordingly.



For example a Project where there are multiple areas like a mine site. Primary Crushing Station as an area and then a conveyor as an area and so forth.



This allows users to work in different areas without interfering with each other.

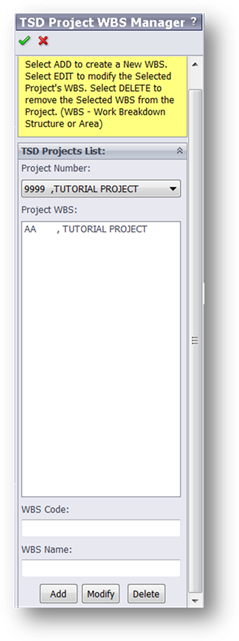

When selecting the Project Number first, a list of existing areas are shown.



Simply Select Add/Modify/Delete to update the list.





After you have created the WBS, Log into the Project and Area refer Loging into a Project





This will create a New Area Assembly eg. 9999-AA.SLADASM





The Steel Detailer requires the project to be broken down into areas or Work Breakdown Structures.



For example a building project may be broken into floors and grids.



A project consists of 4 Project Numbers and then the WBS Codes.



Ie XXXX-AA – the XXXX is the Project Number and AA is the WBS.



The Letters give 26x26 Different WBS areas.

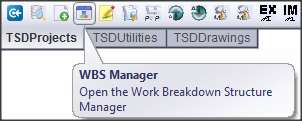

 ● Using this function on the Menu Bar click TSDProjects as shown below, then select the   Icon









● Alternately use the  button located on the Command Manager Tool Bar under TSDProjects tab as shown below.







                   Video Demonstration Link



            Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
