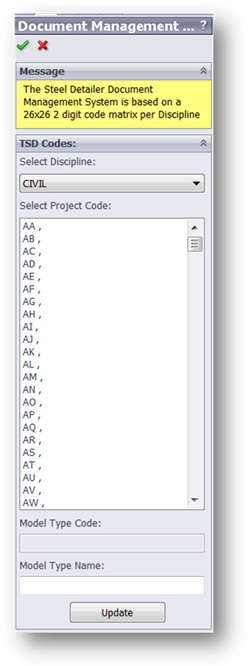

The drawing system manager is where model description codes are created.

It is a 26X26 matrix very similar to an excel spreadsheet. 26 letters from A-Z down the left hand side vertically and 26 letters horizontally across the top from A-Z.

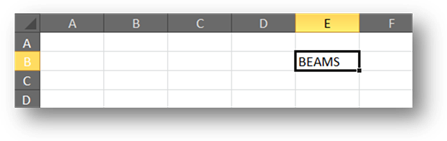

For example. BE [BEAMS] ‘B’ is the Vertical Letter and ‘E’ is the horizontal letter and the description in that cell is ‘BEAMS’.

This is the second of the filters used in finding models for Weldment Members and Parts Libraries.

An example of the code is used in all models below the Area Assembly structure.

Ie : XXXX-AABE001

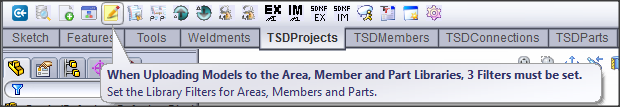

 ● Using this function on the Menu Bar click TSDProjects as shown below, then select the   Icon.

● Alternately use the  button located on the Command Manager Tool Bar under TSDProjects tab as shown below.

                                                                                                                            Video Demonstration Link

                                                                                            Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
