By Selecting from the
3 filters you can insert parts into a model either by a sketch, sketch segment
or point.
First select the
filters to find the part you are inserting into you model. Then Select the model
picture of the part then the sketch Object type for placement.
A part can be
inserted and attached to a Sketch Segment or Sketch Point.
When selecting a
sketch, the part will be inserted on each sketch segment in the sketch with new
file names.
Parts can be inserted into Welded Member Assemblies and Connection Assemblies.
● Using this function on the Menu Bar click TSDParts as shown
below, then select the Icon.

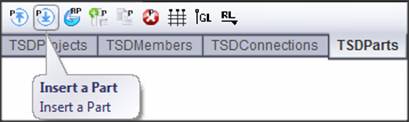

● Alternately
use the
button located on the Command Manager Tool Bar
under TSDParts tab as shown below.
Click this link to go to the TSDParts Toolbar TSDParts Toolbar
