By selecting the back of a plate and the opposite side of a mating part or another plate the punch holes function does just that by converting entities in-context with the mating member, punching all holes.

If the plates hole centres change or the hole sizes change, so does the mating part due to the in-context relationship.

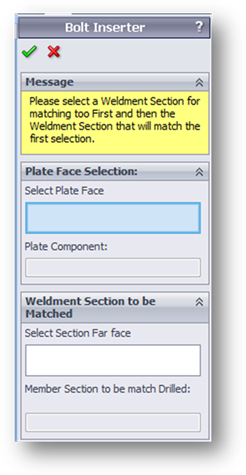

First Select plate face with holes then select the side of the face the holes are to be cut through and up to.

This function only cuts through one section at a time base on the selected sections face.

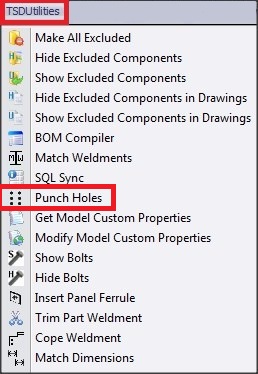

● Using this function on the Menu Bar click TSDUtilities as shown below, then select the  Icon.

                                                                    ● Alternately use the  button located on the Command Manager Tool Bar under TSDUtilities tab as shown below.

                                                                                  Video Demonstration Link

                                                        Click this link to go to the TSDUtilities Toolbar TSDUtilities Toolbar
