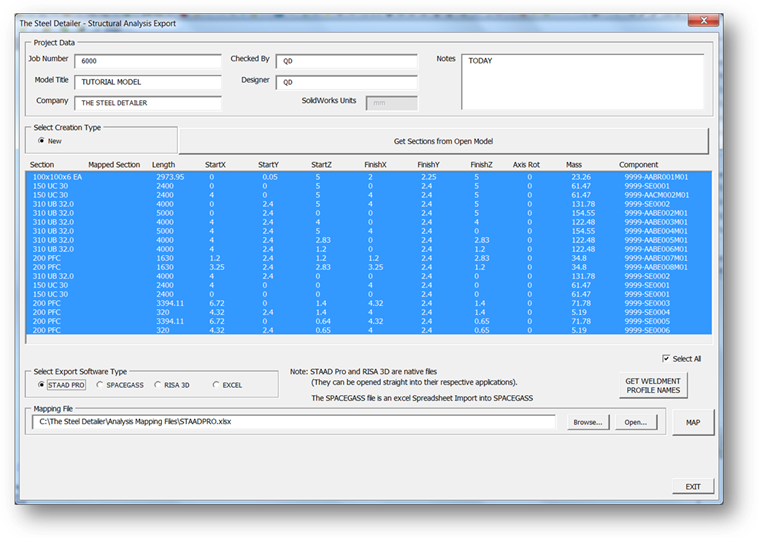

This function exports steelwork data from SolidWorks to a third party applicationsuch as STAAD PRO, SPACEGASS and RISA 3D for analysis natively as a STAADPRO or RISA 3D File. SPACEGASS is an excel export.

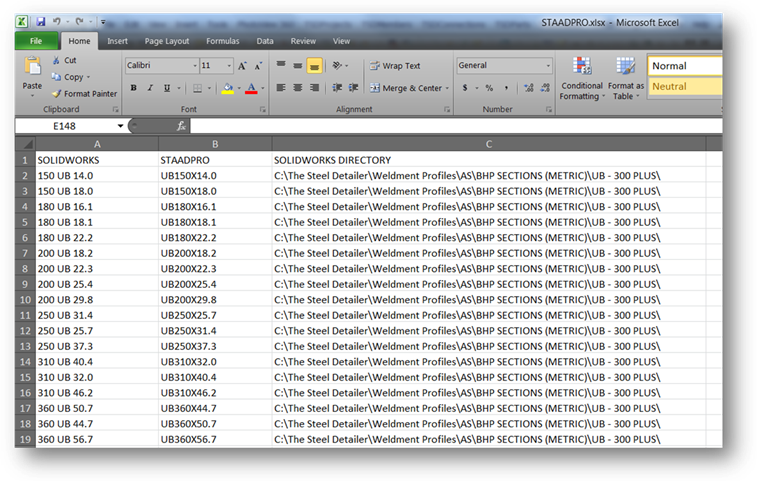

A mapping file is used for exporting and importing Steelwork section data from SolidWorks with The Steel Detailer.



If there are no sections in your mapping file, you will need to add them.



Example is shown below;

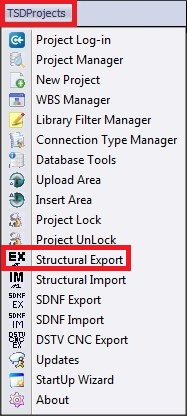

● Using this function on the Menu Bar click TSDProjects as shown below, then select the   Icon.

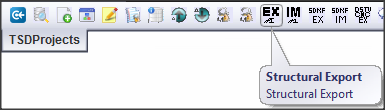

● Alternately use the  button located on the Command Manager Tool Bar under TSDProjects tab as shown below.









                                                                   Video Demonstration Link



                                       Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
