Copies
a part to a sketch, sketch segment or point in the weldment
member with a new mark number automatically.

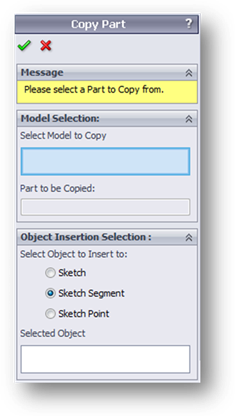

Select
the part to copy and create a new file from.
A part can be copied
and attached to a Sketch Segment or Sketch Point.
When selecting a sketch,
the part will be inserted on each sketch segment in the sketch with new file
names.
Parts can be inserted into Weldment Member Assemblies and Connection Assemblies.
●
Using this function on the Menu Bar click TSDParts as shown below, then select
the
Icon.

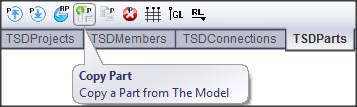

● Alternately use
the
button located on the Command
Manager Tool Bar underTSDParts tab as shown below.
Click this link to go to the TSDParts Toolbar TSDParts Toolbar
