Create a second instance of the same part and insert it on a sketch, sketch segment or point.

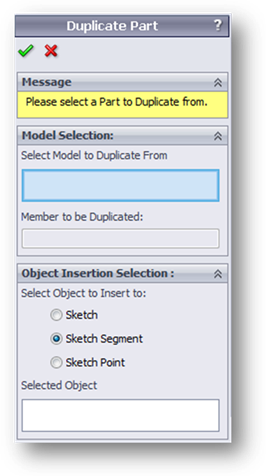

Select the part to duplicate.

A part can be duplicated and attached to a Sketch Segment or Sketch Point.

When selecting a sketch, the part will be inserted on each sketch segment in the sketch with new file names.

 Parts can be inserted into Weldment Member Assemblies and Connection Assemblies.

● Using this function on the Menu Bar click TSDParts as shown below, then select the  Icon.

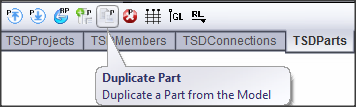

                             ● Alternately use the   button located on the Command Manager Tool Bar under TSDParts tab as shown below.

                                                                                                  Video Demonstration Link

                                                                         Click this link to go to the TSDParts Toolbar TSDParts Toolbar
