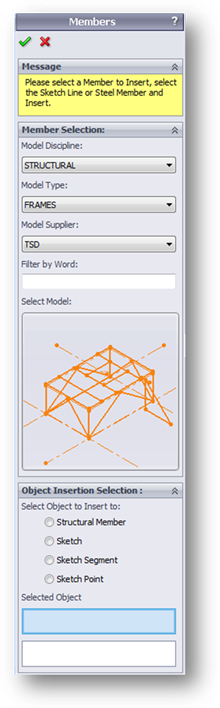

If you have setup your filters to:

·         Discipline: STRUCTURAL

·         Model Type: FRAMES

·         Supplier: TSD

The filters are automatically set for selection on this Welded Member in the library as shown on the view on the left.

Frames are used to attach Welded Members to and are used as the primary Welded Member Assembly for an entire project.

All Welded members from the Welded member library can be attached to the driving sketch Welded member.

A sketch point or line in a WBS Area must exist before insertion.

Simply select the image of the Frame and then a sketch point or line and the object filter for selection of the sketch and then select the Sketch Segment\s required.

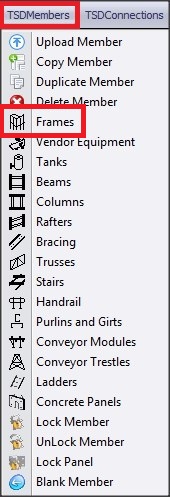

● Using this function on the Menu Bar click TSDMembers as shown below, then select the Icon.

                          ● Alternately use the   button located on the Command Manager Tool Bar under TSDMember tab as shown below.

                              Video Demonstration Link

                                  Click this link to go to the TSDMembers Toolbar TSDMembers Toolbar
