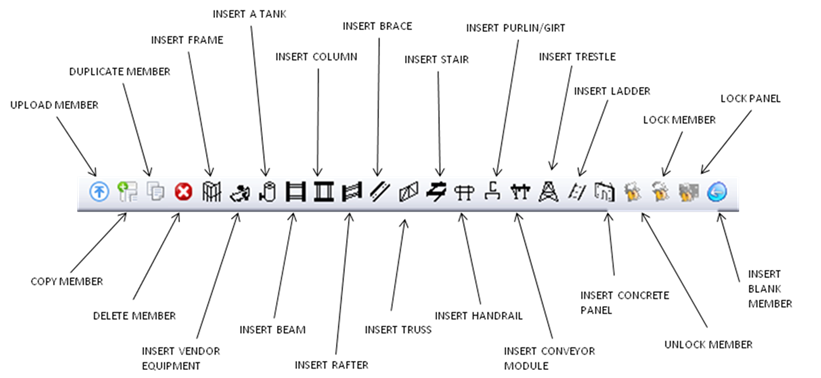

TSDMembers Toolbar







  • UPLOAD MEMBER - Allows user to upload a new member that has be created to the part library - Click the link to view details Upload Member



  • COPY MEMBER  - Copies one member using the automated pack & go functionality wthin TSD, this allows the user to change the mark number as required  - Click the link to view details Copy Member



  • DUPLICATE MEMBER  - This function is used to add another instance of the current member in the model - Click the link to view details Duplicate Member



  • DELETE MEMBER - Use the Delete Member function to remove the Member, the files and keep the database up to date - Click the link to view details Delete Member



  • INSERT VENDOR EQUIPMENT  - Allows the insertion of a vendor item from the library into the model - Click the link to view details Vendor Equipment



  • INSERT TANK  - Use this function to insert library componets into the model - Click the link to view details Tanks



  • INSERT BEAM  - Use this function to insert library componets into the model - Click the link to view details Beams



  • INSERT COLUMN  - Use this function to insert library componets into the model - Click the link to view details Columns



  • INSERT BRACE  - Use this function to insert library componets into the model - Click the link to view details Bracing



  • INSERT TRUSS  - Use this function to insert library componets into the model - Click the link to view details Trusses



  • INSERT STAIR  - Use this function to insert library componets into the model - Click the link to view details Stairs



  • INSERT HANDRAILS  - Use this function to insert library componets into the model - Click the link to view details Handrail



  • INSERT PURLIN/GIRT  - Use this function to insert library componets into the model - Click the link to view details Purlins and Girts



  • INSERT CONVEYOR MODULE - Use this function to insert library componets into the model - Click the link to view details Conveyor Modules



  • INSERT TRESTLE - Use this function to insert library componets into the model - Click the link to view details Conveyor Trestles



  • INSERT CONCRETE PANEL - Use this function to insert library componets into the model - Click the link to view details Concrete Panels



  • LOCK MEMBER - Use this function to lock the member from model edits. To modify the model the unlock function will need to be used - Click the link to view details Lock Member



  • UNLOCK MEMBER -  T his function unlocks the locked member to enable the user to modify the model - Click the link to view details Unlock Member



  • LOCK PANEL - Use this function locks the panel simular to the member lock to edit the panel the model will then need to be unlocked - Click the link to view details Lock Panel
