Lock Panel is similar to Lock Member.

·         Places Project Information into Drawing Custom Properties

·         Marks the Main Section blue in colour to show it is locked

·         Places symbols for ferrules on all holes based on symbols list

                 in the Panels folder inside The Steel Detailer folder.

                 Symbols are parts that placed on the holes.

                 Field attributes are selected before the lock and are placed into the panel drawing sheet.

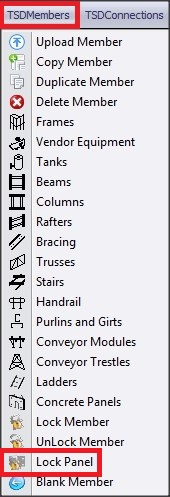

                 ● Using this function on the Menu Bar click TSDMembers as shown below, then select the  Icon.

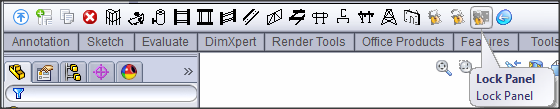

                                                       ● Alternately use the  button located on the Command Manager Tool Bar under TSDMember tab as shown below.

                                                                                                         Video Demonstration Link

                                                                                                            Click this link to go to the TSDMembers Toolbar TSDMembers Toolbar
