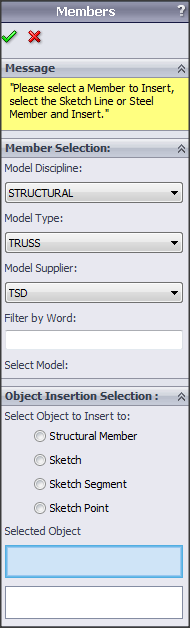

If you have setup your filters to:

·         Discipline: STRUCTURAL

·         Model Type: TRUSS

·         Supplier: TSD

The filters are automatically set for selection on this Welded Member in the library.

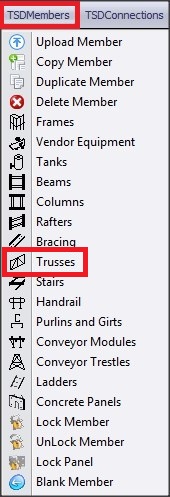

● Using this function on the Menu Bar click TSDMembers as shown below, then select the Icon.

EXAMPLE TRUSS

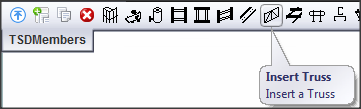

● Alternately use the button located on the Command Manager Tool Bar under TSDMember tab as shown below.

Use Example given under inserting a Beam  -  Video Demonstration Link

Click this link to go to the TSDMembers Toolbar TSDMembers Toolbar
