Member lock  enables the user to complete the following processes;



·         Changes Templates to Project Templates.

·         Places Project Information into Drawing Custom Properties.

·         Checks for existing plates, compares and replaces.

·         Places Section Parts and respective drawing into a Folder.

·         Places Plate Parts and respective drawing into a Folder.

·         Places Vendor Parts and respective drawing into a Folder.

·         Places a BOM on each drawing sheet with totals.

·         Updates the total and Mass on the Mark Description.

·         Marks the Main Section blue in colour to show it is locked.

·         Collects the bolts based on user selection.

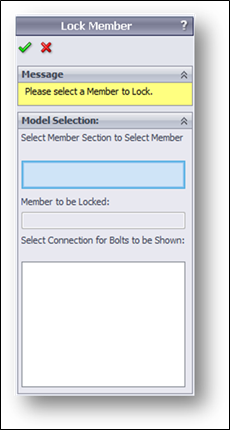

By selecting the main section of a Weldment member and then the bolts in a connection that belongs to the Weldment member that is being bolted to other members,

You will lock the Weldment member and lock the bolts to that member.

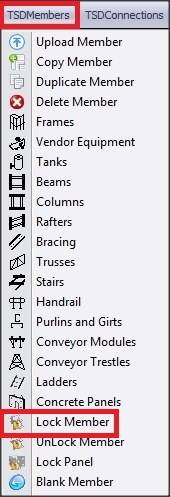

              ● Using this function on the Menu Bar click TSDMembers as shown below, then select the  Icon.

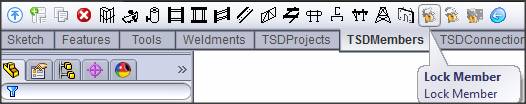

                  ● Alternately use the  button located on the Command Manager Tool Bar under TSDMember tab as shown below.









                                                         Video Demonstration Link



                        Click this link to go to the TSDMembers Toolbar TSDMembers Toolbar
