To add a model to the Welded Members library use the Upload Member Function.

A Welded Member is an Assembly that contains steel sections and connections with associated drawings.

You can Upload a TSD File using the From File choice and then browse to it or alternatively you can upload the currently open Welded Member Assembly.

Remember to create the three Filters as per Creating Library Filters  before uploading.

To remove a library Welded Members, use the Modify Existing Member function in the Upload Member function shown to the left under Existing Member Library model:

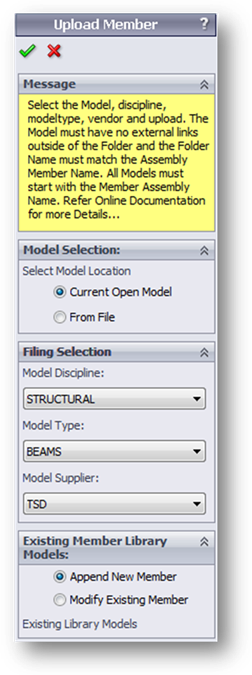

·  Upload Member using the SolidWorks Command Manager as shown below.

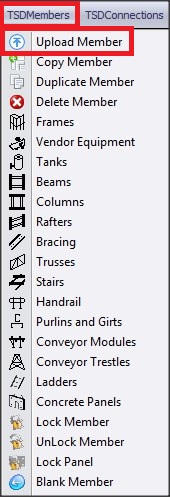

●  Using this function on the Menu Bar click TSDMembers as shown below, then select the  Icon.

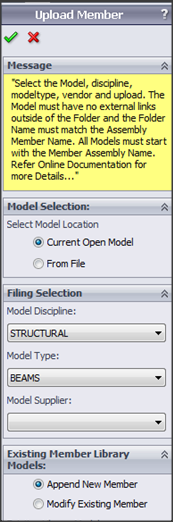

                                                            ● Alternately use the button located on the Command Manager Tool Bar under TSDMember tab as shown below.
