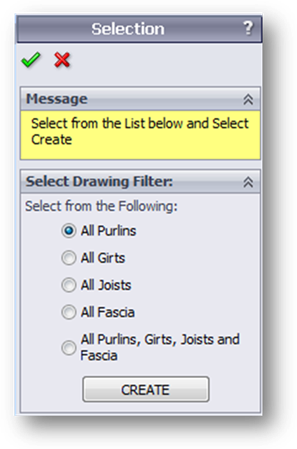

By Selecting from 5 options, any Girts, Purlins, Joists, Fascias or all drawings can be created by extracting information from the model.

When creating Purlins/Girts etc, the face must have a name called ‘TOP’ and must be exactly as it is named in capitals.

This is for TSD to capture the face and holes.

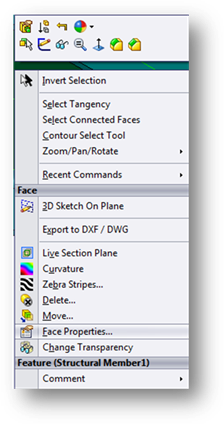

Simply select the face with holes and right mouse click and select Face Properties to

name the face.

● Using this function on the Menu Bar click TSDDrawings as shown below, then select the   Icon.

● Alternately use the  button located on the Command Manager Tool Bar under TSDDrawings tab as shown below.

            Video Demonstration Link

Click this link to go to the TSDDrawings Toolbar TSDDrawings Toolbar
